Data Center Map

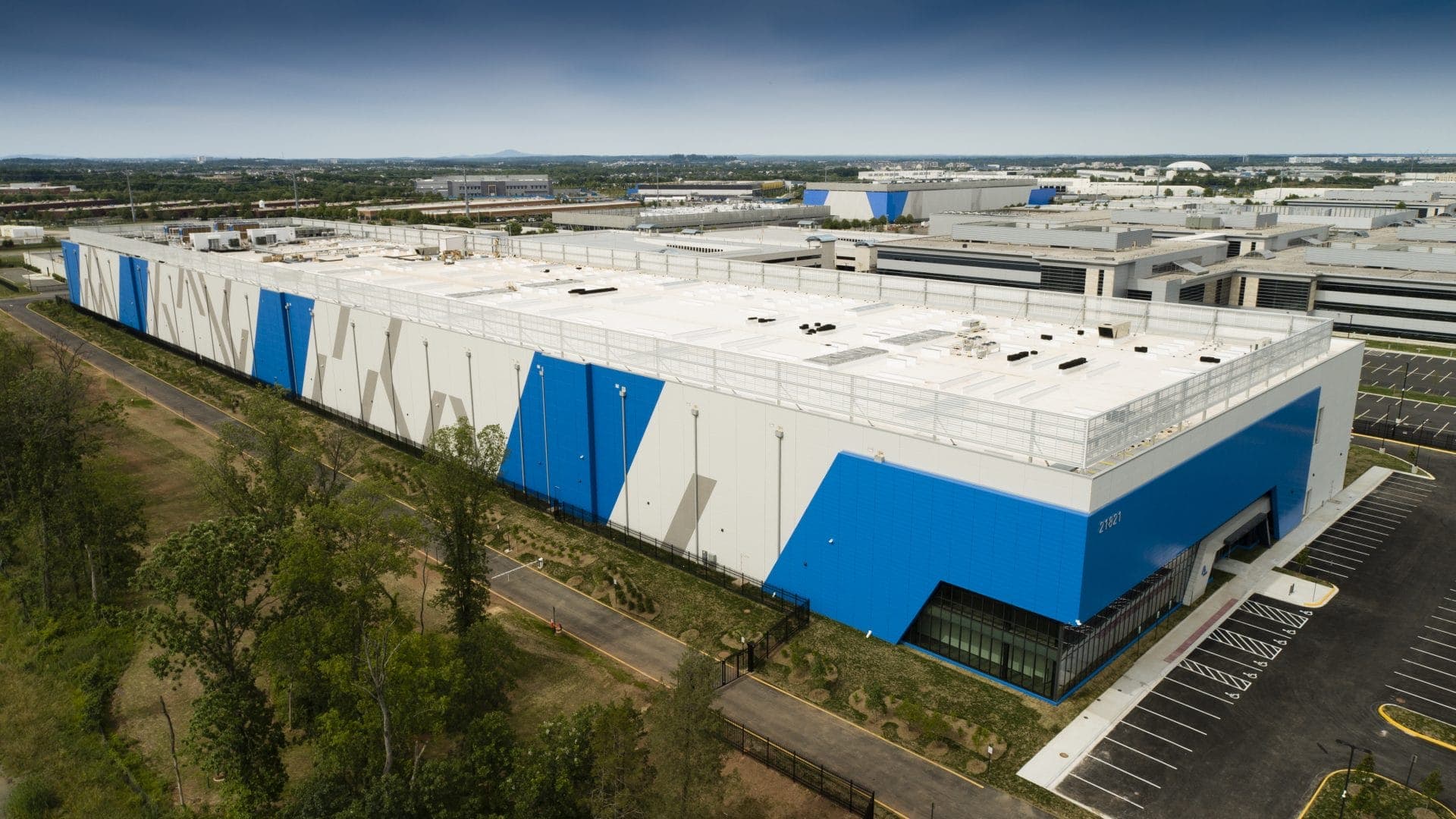

Aligned IAD-02

Aligned Data Centers
21821 Uunet Drive
20147 Ashburn
Virginia, USA
Visit Website

Suites
Remote Hands


26 acre data center campus, with a total of 513,000 square feet and 120 MW of power.

Facts
- Completed in 2020
- 26-acre campus
- Expandable to 120 MW
- White space square footage: 283,023 sq. ft.
- Building square footage: 438,460 sq. ft.
- Private, dedicated data center suites
- Concrete slab-on-grade and structured steel
- Two interconnected multi-tenant buildings
- ASCE 7 occupancy category IV
- Data hall FM-120 and office FM-90 roof lift ratings
- Wind importance factor of 1.15
- Two bays with delivery platform and equipment trap
- Dedicated office space for rent
- Shared conference rooms and drop-in office pods
- 24x7x365 accessibility
- Industry-leading PUE

Security & Fire Protection
- 8’ Impasse steel security fencing with laser intrusion detection
- Five-layer security design
- Card reader access
- 24x7x365 on-site security guards
- Multiple checkpoints: mantraps, dual authentication (biometrics and RFID badge readers)
- Event-driven IP video surveillance and visual light-based alerts
- Separately zoned data halls
- Very Early Smoke Detection Apparatus (VESDA)
- Dual interlock pre-action system

Connectivity & Power
- Two diverse points of entry, per build
- Carrier-neutral
- On-net: Cogent, Lumen, PacketFabric, SummitIG, Verizon (VCT & VCB), Windstream, Zayo
- Near-net: Aqua Comms, BT, Colt, Deutsche Telecom, GTT, Hurricane Electric, NTT, PCCW, Tata, Tennebris Fiber, TeliaSonera, major exchanges in NoVA, and many more
- Less than one mile from 21715 Filigree Court Carrier Hotel
- Major fiber thoroughfares within ~100 feet of facility
- Seamless build process for carriers not already built in
- Diverse meet-me-rooms and fiber entrances with dark fiber and lit services available
- Diverse and dedicated substations: expandable to 240MW
- Concurrently maintainable UPS
- N+2 power generation
- Redundant A+B distribution
- Revenue-grade metering

Cooling
- Our hot aisle containment strategy absorbs heat at its source,
- supporting standard and high power densities,
- allowing you to scale vertically and horizontally without stranding capacity
- Configurable to client needs (N, N+1, 2N)

Compliance
- System and Organization Control (SOC) 2 Type 2 and SOC 1 Type 2
- PCI DSS, HIPAA, HITECH, FISMA /NIST 800-53, and ISO 27001:2013

Aligned Ashburn IAD02 Spec Sheet.pdf
Aligned IAD-02 Pricing
If you are looking for colocation, cloud, connectivity or other services in Aligned IAD-02, or other data centers in Ashburn or by Aligned Data Centers, please try our free quote service or reach out for a free consultation about your data center needs.
