Cages
Private Cabinets
Partial Cabinets
On-Net Products
. IP Transit
. Ethernet Transport Services

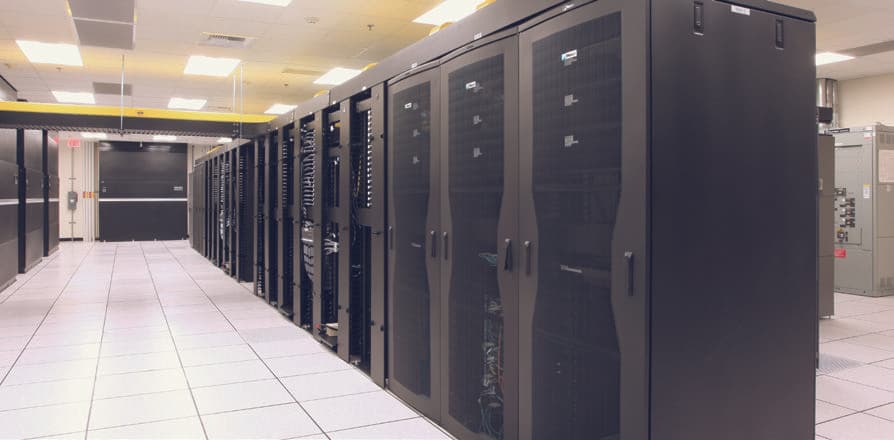

Standard Rack Configuration
. 42U Cabinets (Type: APC AR3100)
. Power extra (1) 110v/20 amp or (2) 110v/20A standard
Facilities
. 480v 3-phase utility feed - 3,000 amps
. 2,960 sq. feet of raised floor data center space in DC 1
. 4,908 sq. feet of raised floor data center space in DC 2
. Custom Cages available & WIFI Available
Security
. C*CURE Card-Reader Access Control System (11) total at all essential access points. Entrance into actual data centers requires HID card swipe and unique pin code for access
. (21) cameras tied into software with recording and 24/7 monitoring capabilities
UPS Systems
. (4) UPS Systems - (2) for DC 1 at 900kVA each (2) Units for DC2, at 300kVA each
. (2) "A+B" systems - One pair for each data center
Generator Systems

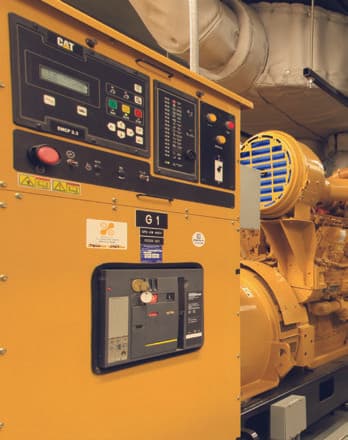

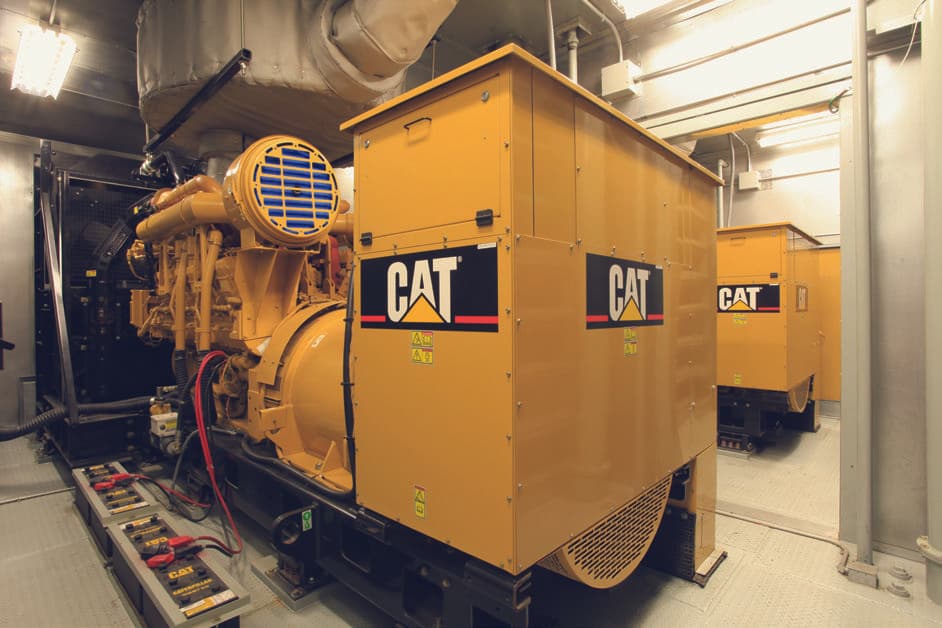

. (3) Caterpillar Diesel Generators
. (2) 1500kW Generators for DC 1
. (1) 750kW Generator for DC 2
. Each unit has a diesel fuel tank (2) 2800 Gallon tanks and (1) 2000 Gallon tank
Electrical
. (6) Automatic Transfer Switches,
. Manufacturers: (4) CAT Units and (2) Russelectric Units
. (4) PDI PDUs and (11) Liebert PDUs in both data centers
Fire Systems
. Fire suppression and detection system consists of heat detectors, smoke heads, preaction sprinkler system in each data center room
. DC 1 also has a Vesda air sampling smoke detection system
. DC 2 also has a (4) Halon tank system
HVAC
. (9) 20-ton air cooled Liebert HVAC units in DC 1
. (3) 20-ton air cooled Liebert HVAC units in DC 2
. Corresponding Rooftop Condenser Units for Each Interior Unit
For informational purposes only. Cogent does not guarantee the information set forth above and it may be changed without notice.
