US Signal Madison WI02

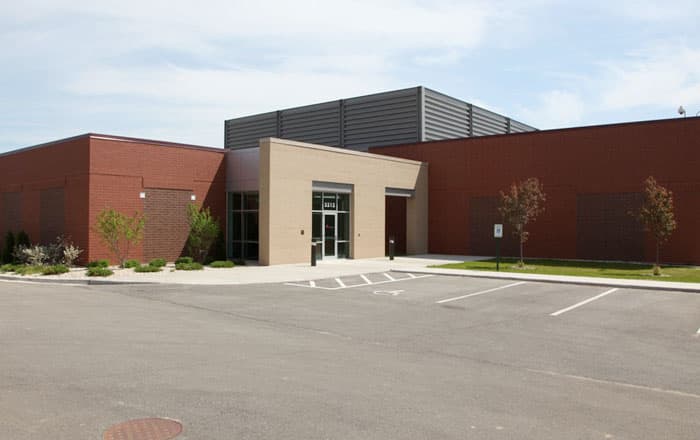

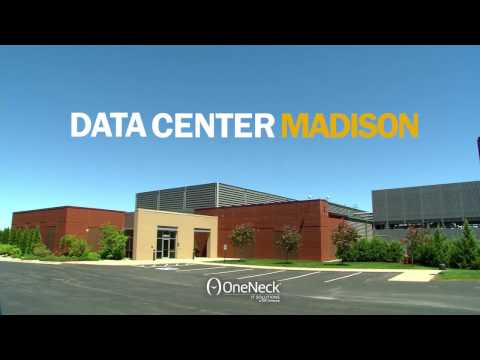

The OneNeck IT Solutions Data Center in Madison, Wis. is a 60,000-square-foot facility designed from the ground up for energy efficiency and the low noise needs of the community.

Working closely with the local utility, OneNeck was able to capture the highest level of energy efficiency through the use of premium, redundant power equipment and cooling infrastructure for the data center. For customers interested in high-density computing equipment, this facility minimizes energy usage and operating costs. Call 855-ONENECK, or click here to learn more about the benefits of this data center facility.

Specifications
Site
Size.............5.0 Acres
Year Built.........2008
Location...........5515 Nobel Drive, Fitchburg, WI
Commercial Power.....300Watts+ per square foot
Utility............Madison Gas & Electric
On-Site Office.......50,000-square-feet of class-A office

Facility
Size.............60,000-square-feet
NOC Area..........7,000-square-feet
Type.............Purpose built
Floor Load..........250 lbs+ per square foot
Ceiling Height.......15 Feet
Column Spacing.....30 Feet
Loading Area.......Loading dock (grade level) and raised (semi-truck height)
Parking...........150+ spaces on-site
Building Access.......Customer access 24/7

Data Center
Services Type.......Private suite, cage or cabinet
Access System.......Biometric/multi-level card system
Surveillance System...Recorded digital video at all entrances
Generators........Three 1.5 mW
Fuel Storage.......30 hours+ on-site with multiple priority 4-hour refueling contracts
UPS.............2N configuration (500kw systems)
Fire Detection.......VESDA (very early smoke detection alarm)
Fire Suppression.....FM200 and FE25 Clean Agent
HVAC............N+1
Power...........2 diverse path utility feeds

Telecommunications
Type............Carrier neutral facility
Entrances..........quadruple entrances to telco room
On-Site Fiber.......Private MAN to all local carrier CO's
Carriers (Local).......AT&T, Charter, CenturyLink, TDS Telecom, WIN, Windstream
