EUSDC

Euro Strada S.R.L. is a local infrastructure developer in Brasov and which constructed and currently owns and operates a 1 MegaWatt High Density Green Modular Data Center integrated by IBM Corporation. The job was done in less than one year and celebrated on 12th of March 2014 the official launch for international presence in the Data Center Market.

IBM Corporation won in 2013 the contract of delivering and assembling for Euro Strada an underground secured high density facility, including the modular free-cooling chilling solution, a scalable UPS frame with two generators attached. Due to European Regulations the underground floor housing the DC is configured also with security features serving as an atomic shelter with ex. 1 tonne heavy security doors.

Willing to be the most innovative and efficient IaaS Provider in the country, Euro Strada ordered IBM to implement a high density power architecture with InRow cooling solution for up to 25 kW per Rack. Access control features in the underground facility are biometric solutions, the anti seismic infrastructure is isolated by ISO-Base Technology.

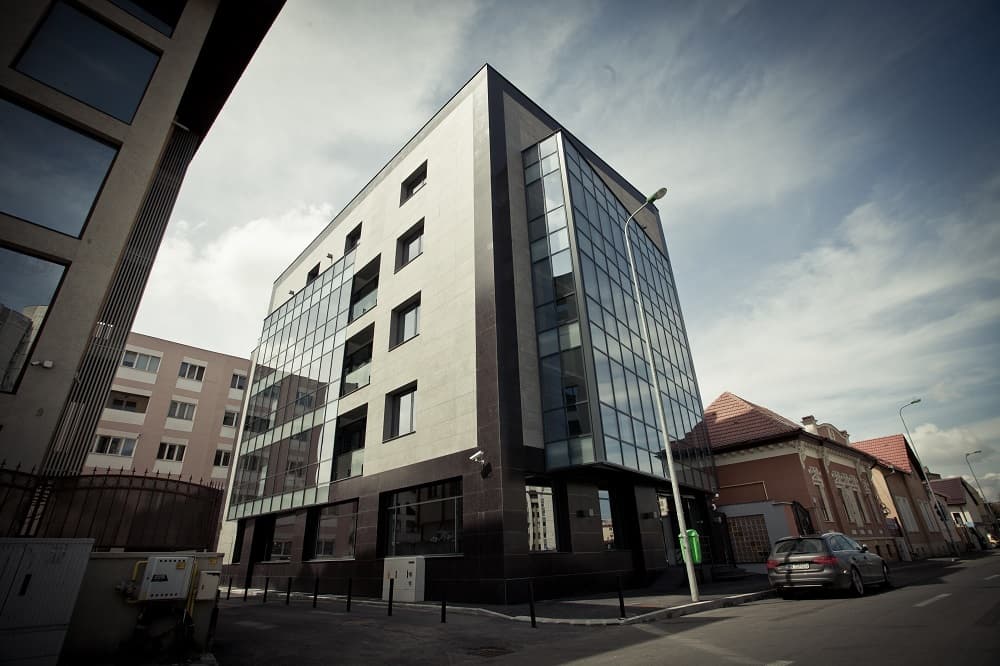

For International Disaster Recovery and Backup Service, Euro Strada connected Tier 1 Providers in it's dual Nexus Network Cores, so that multinational customers can benefit from Tier 1-connection services. The Euro Data Center building is preparing to rent the rest of the top floors to multinational businesses which desire high tech infrastructure connected directly to the Data Center.

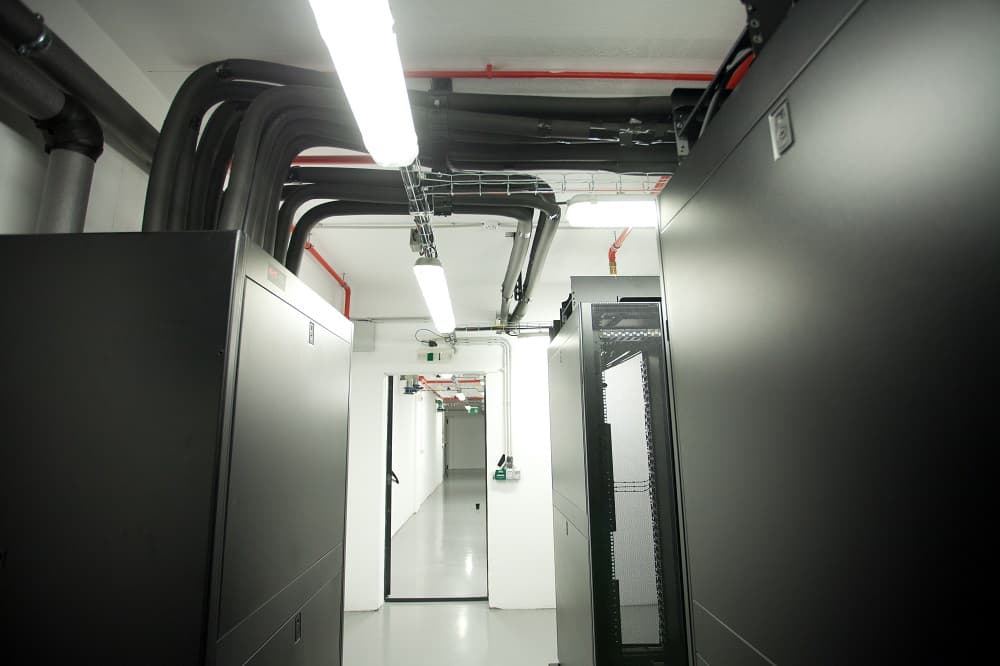

Colocation Room
Surface: 93.50 sqm

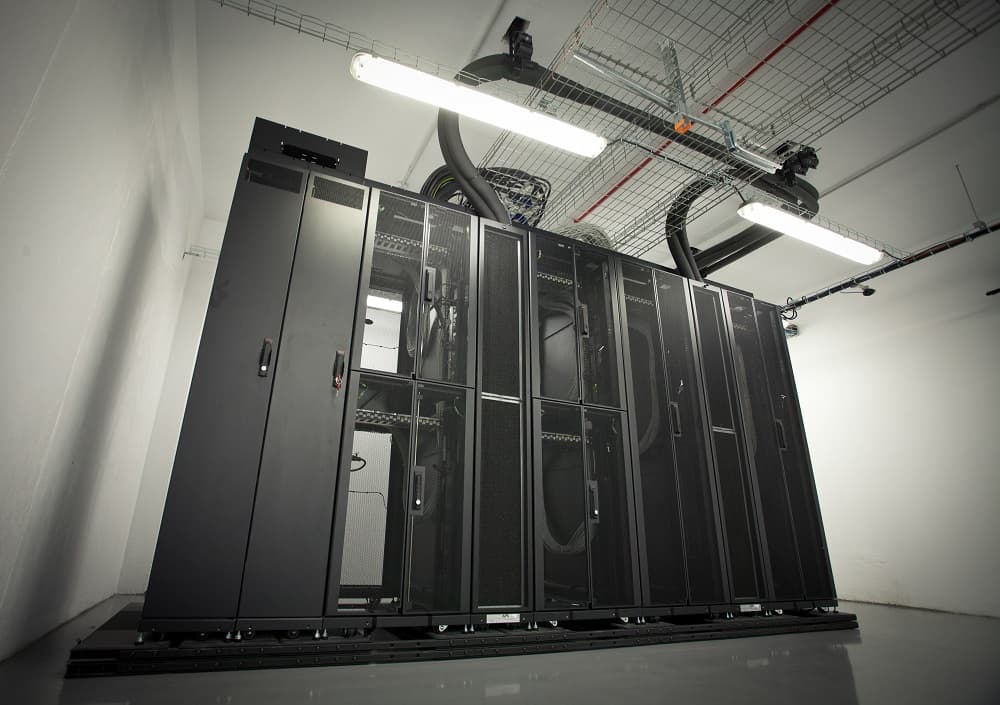

Rack NetShelter SX 42U 600mm Wide x 1070mm Deep Enclosure
Rack NetShelter SX Colocation 2 x 20U 600mm Wide x 1070mm Deep Enclosure
Seismic Isolation Platforms - ISO Base for each Rack
Preconfigured 33x 10KW Racks
Up to 42U deployable Racks
Modular scalable infrastructure
Floor treated with with anit-static paint
Temperature and humidity control and management
Hot aisle width 1,20m
Cold aisle width 0,91m

Telco Room
Interconnection with Telecom SP's (Tier1, Tier2)
Multiple Cat.7 connections to Core Network
NetShelter SX 42U 750mm Wide x 1070mm Deep Enclosure
Seismic Isolation Platforms - ISO Base for each Rack

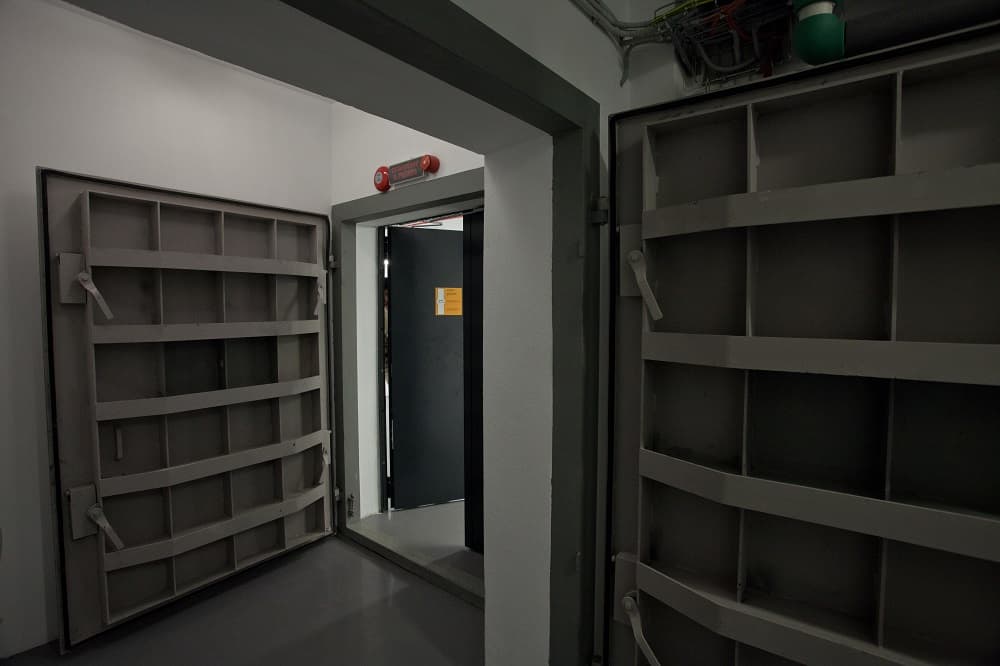

Security
Data Center located in atomic shelter
Biometrics Authentication
Fire resistant doors F90
24/7 security service
IP Video surveillance

Access
Dedicated Room 24/7 for client's Data Center Operations
Multiple 1Gbps connections to Core Network for management
Remote Hands/On-site service
Dedicated conference room
HDMI projector

Power
UPS System - APC Symmetra
Cooling UPS - Redundant Uniflair Technology
2x 550 KVA parallel connected Diesel Generators
1MW total capacity
Redundant power for each Rack
APC / Schneider - InfraStruxure Management - Software

Cooling
High Density Cooling Infrastructure
High Efficient Free-Cooling Technology
InRow Cooling System
Up to 25KW/rack
Fire detection and supression
NOVEC 1230 Fluid
3 independent areas

Cabling
Cat. 7, Reichle&DeMassari
Redundant connections from each Rack to the Core Network Racks
Ports: 1 Gbps, 10 Gbps, 10 Gbps fiber MMF duplex OM3/OM4

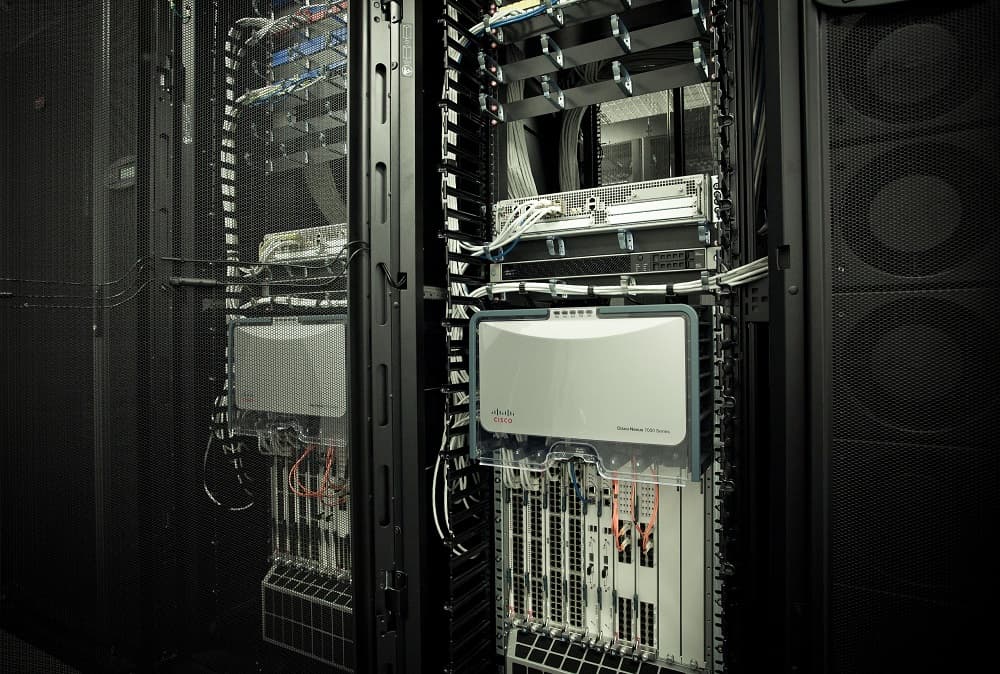

Network
Cisco Platforms
. Nexus 7000 series SUP2E
. ASA X series
. ASR series
. ISR 3900 series
. 3750X series
BGP sessions with Tier1 si Tier2 SP's
Different bandwidth packages
VPN L3
Traffic analysis - based on source/destination IP, TCP, UDP, NetFlow, dedicated hardware for security services, customizable filter lists.

Remote Office
Dedicated area for unpacking and assembling

Warehouse
Dedicated storage for backup devices/equipment for temporary storage
